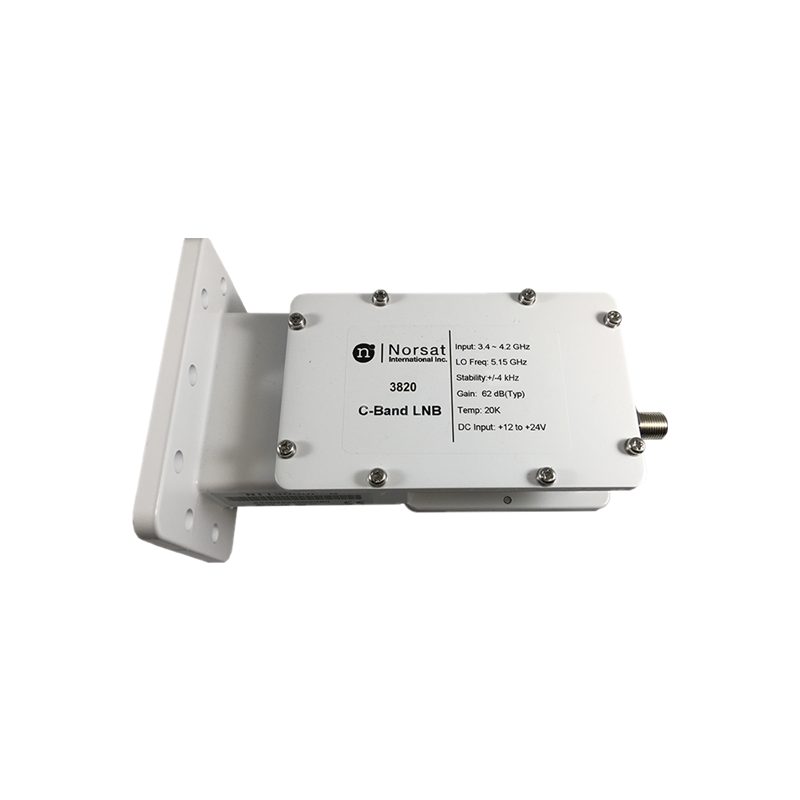

Norsat 3820F C-Band Single Band PLL LNB C波段高頻頭為世界各地的衛星通信提供信號接收。 我們以盡可能小的外形尺寸提供卓越的性能和可靠性。 作為業界領先的高性能 LNB 供應商，我們所有的標準 C 波段 LNB 均享有 3 年保修和近四十年的經驗。 3000系列。

Norsat 3820F主要特征

• C 波段單波段 PLL LNB

• 3000系列

• 輸入頻率：3.4– 4.2 GHz

• 本振頻率：5.15 GHz

• 輸出頻率：950 – 1750 MHz

• LO 穩定性：±4 kHz

• 噪聲溫度：20K（典型值）

• Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 3000 Series.

•


• KEY SPECIFICATIONS
  Band	C-Band
  Input Frequency Band 1	C-Band: 3.40 - 4.20 GHz
  Lo Stability	+/- 4 kHz
  Lo Type	PLL
  Noise Figure	20 K
  Output Frequency 1	L-Band: 950 - 1750 MHz
  Product Family	3000 Series

• RF SPECIFICATIONS
  Conversion Gain	62 dB typ
  Input VSWR	2.5 : 1 max.
  Lo Frequency 1	5.15 GHz
  Output VSWR	2.5 : 1 max.

• INTERFACE SPECIFICATIONS
  RF Input Connector	CPR 229G waveguide grooved
  RF Output Connector	F-75 Ohm

• ENVIRONMENTAL SPECIFICATIONS
  Temperature Operational	-40 to +60°C
  Temperature Storage	-40 to +80°C
  Weight	500g

• PHYSICAL SPECIFICATIONS
  Dimensions (LxWxH)	145 x 70 x 99 mm
